Pressure/Process Control

Scroll Down to browse our Pressure and Process Controllers, Throttling Butterfly Valves, and Soft-Start Poppet Valves

  • Throttling Butterfly Valves

    Fully integrated Throttling Butterfly Valves (TBV) for downstrean pressure control applications. Ultra-fast actuation, 90-200 msec, and advanced adaptive control algorithm provide unmatched control capabilities. Modular design helps reduce overall system cost for OEMs.

    Unique master/slave configurations using our NC-Net interface. Slave devices only need motion control onboard, further reducing costs to equipment integrators.
    These TBV's are offered in both sealing and non-sealing configurations.

    TBVI Series - Huntington patented sealing technology

    Sizes Available:
    NW 16, NW 25, NW 40, NW 50, ISO 100, CF 160

     TBV Series - Standard
    Sizes Available:

    NW 16, NW 25, NW 40, NW 50, ISO 63, ISO 80,  ISO 100, CF 160, ISO 160, ISO  200, ISO 250

    ASA and CF flanges available on request.



    TBV-IA Series



  • Adaptive Pressure Controller

    Standard: 12-bit analog front-end, up to two heated gauges, adaptive pressure control

    Advanced: 24-bit analog front end, up to two heated gauges, RTOS, adaptive pressure control

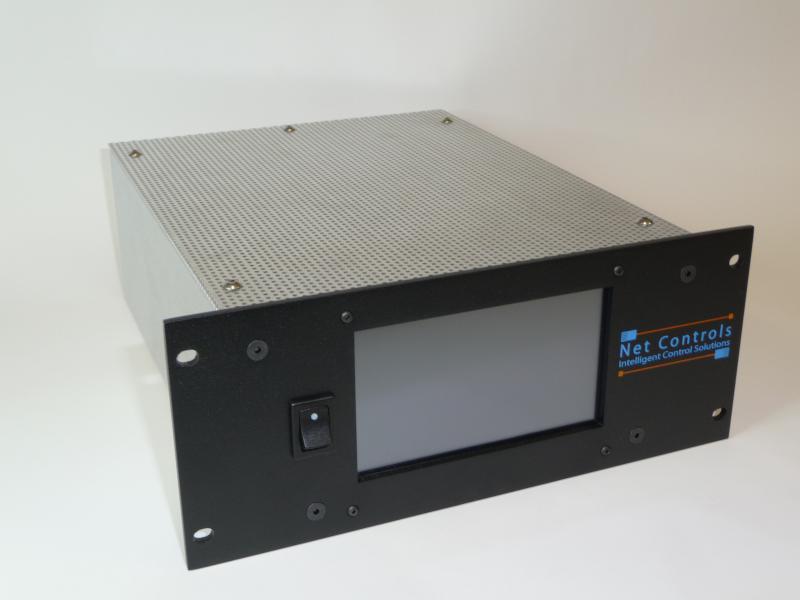

    Pressure Controller w/ Touch






























    98-00-9910

    APC, 24 VDC, STD, 12-bit analog, Single Gauge, 15W

    98-01-9910

    APC, 85-264 AC, STD, 12-bit analog, Dual Gauge, 20W

    98-01-9912

    APC, 85-264 AC, STD, 12-bit analog, Heated Dual Gauge, 30W

    98-00-9913

    APC, 24 VDC, ADV, 24-bit analog, Dual Gauge, 20W

    98-01-9913

    APC, 85-264 AC, ADV, 24-bit analog, Dual Gauge, 20W

    98-03-9913

    APC, 85-264 AC, ADV, 24-bit analog, Heated Dual Gauge, 30W


    Call for pricing and availability
