Motion Control
Click to view our new 9X Series Motion Controllers with Adaptive Torque Control

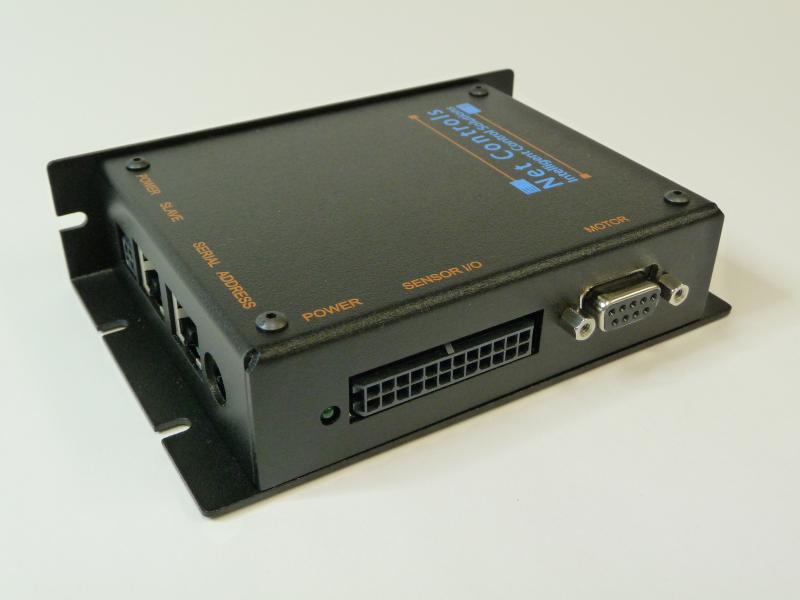

Single Axis Motion Control
Standard Driver
24V micro-stepping driver with incremental encoder interface, real-time operating system, up to 4 limit switch/sensor inputs, and 4 24VDC I/O’s.
Advanced Driver
24V micro-stepping driver provides stall detection, eliminating the need for encoders. Real-time operating System, 2 limit switch/sensor inputs, and 4 24VDC I/O’s.
90-01-9904 24V uStepping 3A Driver + Controller
90-01-9903 24V uStepping 3A Driver + Controller + Stall Detect

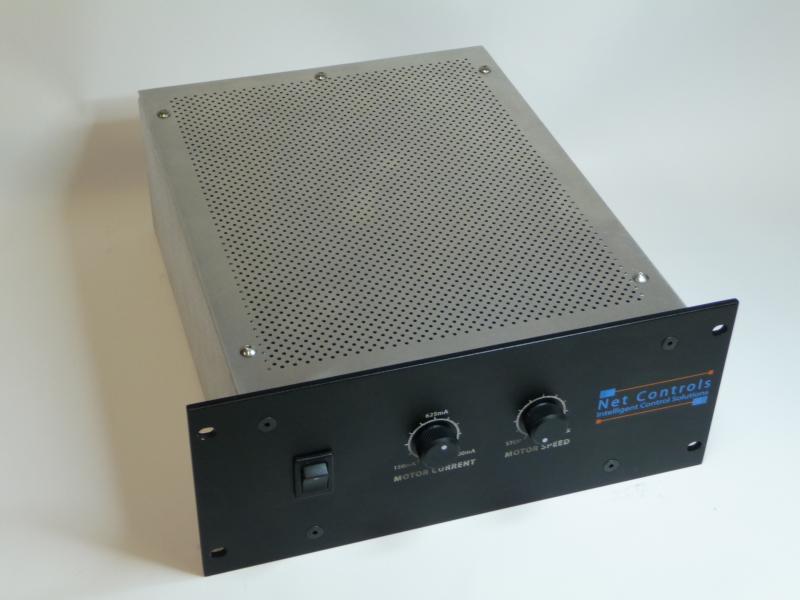

90-01-9906 24V uStepping 6A Driver + Controller + Stall DetectMulti-Axis with Integrated Power Supply
1-6 axis micro-stepping driver(s) and controller(s) with integrated 100-250W power supply. ½ Rack mount with 85-264VAC input. Single communications interface controls up to 3 motors.
4-6 axis controllers contain dual 250W power supplies, 85-260 VAC input and provide and single communications interface.
91-01-9904 1-axis uStepping 3A Driver + Controller
91-02-9904 2-axis uStepping 3A Driver + Controller
91-03-9904 3-axis uStepping 3A Driver + Controller
91-04-9904 4-axis uStepping 3A Driver + Controller
91-05-9904 5-axis uStepping 3A Driver + Controller
91-06-9904 6-axis uStepping 3A Driver + Controller
92-01-9904 1-axis uStepping 3A Driver + Controller w/ Color Touch
92-02-9904 2-axis uStepping 3A Driver + Controller w/ Color Touch
92-03-9904 3-axis uStepping 3A Driver + Controller w/ Color Touch
91-01-9903 1-axis uStepping 3A Driver + Controller + Stall Detect
91-02-9903 2-axis uStepping 3A Driver + Controller + Stall Detect
91-03-9903 3-axis uStepping 3A Driver + Controller + Stall Detect
91-01-9906 1-axis uStepping 6A Driver + Controller + Stall Detect
91-02-9906 2-axis uStepping 6A Driver + Controller + Stall Detect
